BMW F20 – B37 Intake Manifold Complete

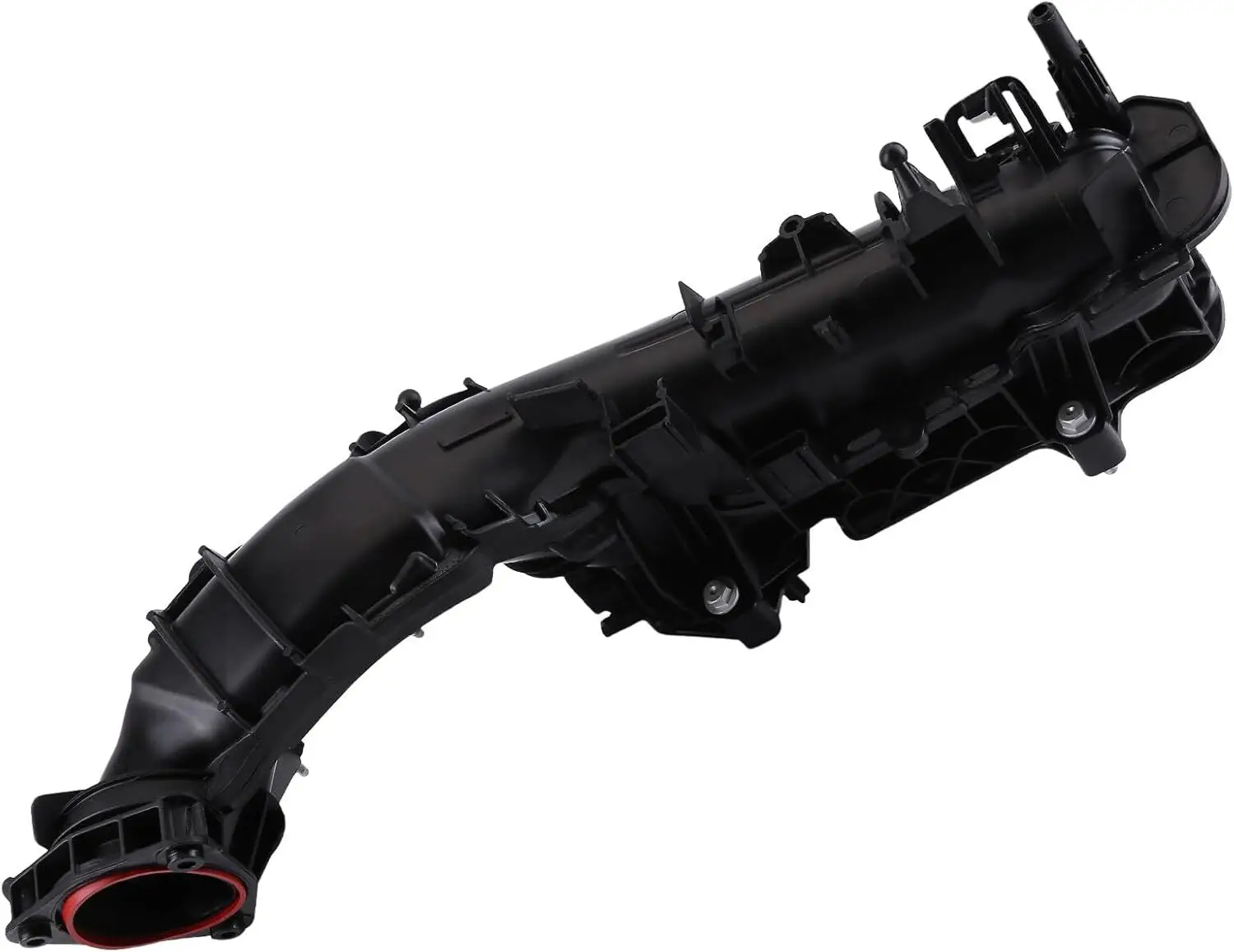

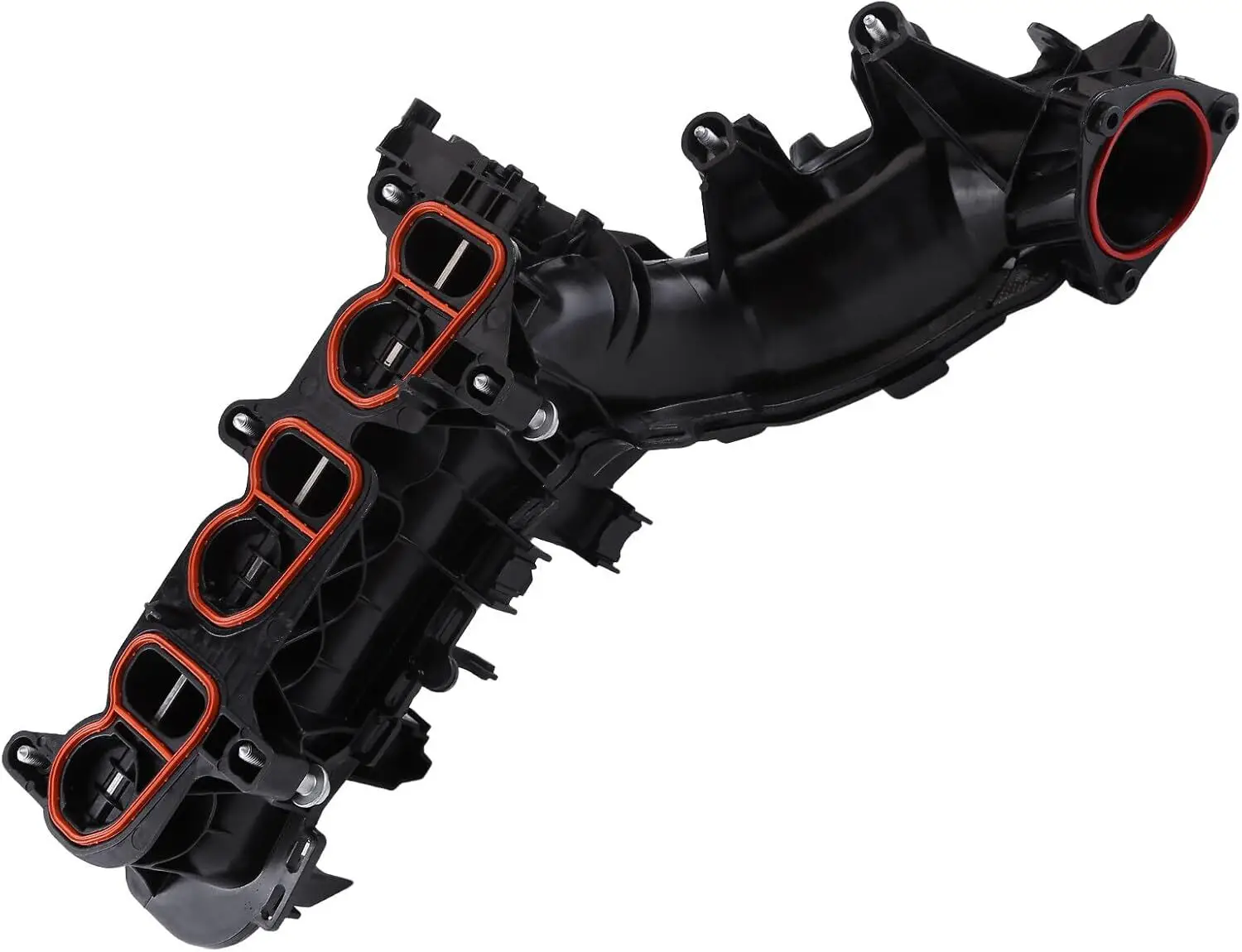

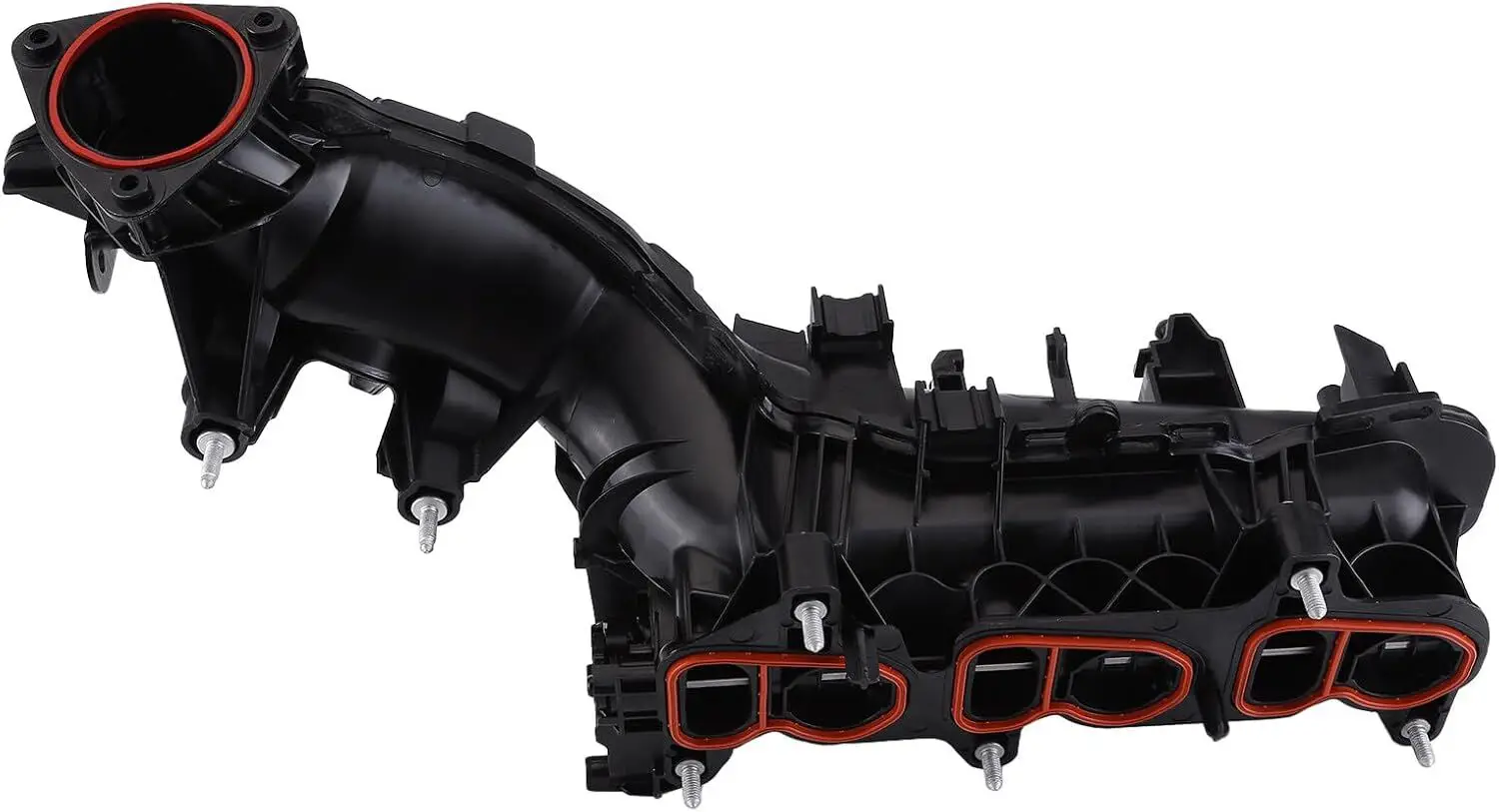

The Intake Manifold Complete designed for BMW's B37 diesel engine ensures the engine operates smoothly by distributing air entering the combustion chamber in a balanced and efficient manner. The body structure, air channel geometry, and sensor/connection ports are fully compatible with the B37 engine architecture. Thanks to the use of materials resistant to high temperatures and chemicals, it offers a long service life.

Compatibility

• BMW 1 Series F20/F21 – B37 engine versions (e.g., 116d, etc.)
• Confirmation based on the chassis number (VIN) is mandatory. The part number may vary according to the production year/sub-model package.

Key Features

• Correct Air Distribution: Balanced airflow between cylinders with channel design.
• Sealing: Gasket ports and connection surfaces minimize the risk of vacuum leaks.
• Compatibility Points: Ready interfaces for MAP sensor, EGR connection* and auxiliary equipment ports. (*depends on equipment level)
• Durability: High heat/chemical resistant composite body.
• OE equivalent quality: Assembly tolerances and connection dimensions are compatible with original standards.

Technical Specifications

Symptoms of Failure

• Irregular idle, stuttering, or power loss
• Malfunction indicator lamp (MIL) and related air/fuel mixture error codes
• Increased fuel consumption and weakness in traction
• Air leak sound, carbon buildup, or suspicion of cracked body

Benefits of Replacement

• Stable idle and smoother throttle response
• Correct mixture formation and efficient combustion
• Improvement in fuel consumption and emissions (depends on vehicle condition)

Installation & Service Tips

1. Mark the connection positions and hose/sensor arrangement before removing the old manifold.
2. Clean the gasket surfaces; install new gaskets paying attention to their orientation.
3. Apply torque values according to BMW technical data (do not overtighten).
4. Perform a vacuum leak test after installation; if necessary, carry out DDE adaptation and error code clearing procedures.

Box Contents

• 1 x Intake Manifold Complete
• Gasket/O-ring set (if applicable)
• Mounting screws/clamps (if applicable)
• Sensors/actuators (if applicable)

Frequently Asked Questions

Does this manifold fit all F20s?

It is only compatible with B37 engine versions. The F20 has different engine options; confirm with VIN before ordering.

My malfunction light is on, will it turn off when I change the manifold?

It depends on the cause of the malfunction. System check and error code clearing/adaptation procedures are recommended after installation.

Will I need extra parts?

In most cases, new gaskets are recommended. Sensors/actuators can be interchangeably used with the parts in your existing vehicle; a new one may be included depending on the variation.

Maintenance Recommendation

Fuel quality, EGR carbon buildup, and air filter condition affect the cleanliness of the intake line. Adhering to periodic maintenance intervals and checking for air leaks will extend the manifold's lifespan.
