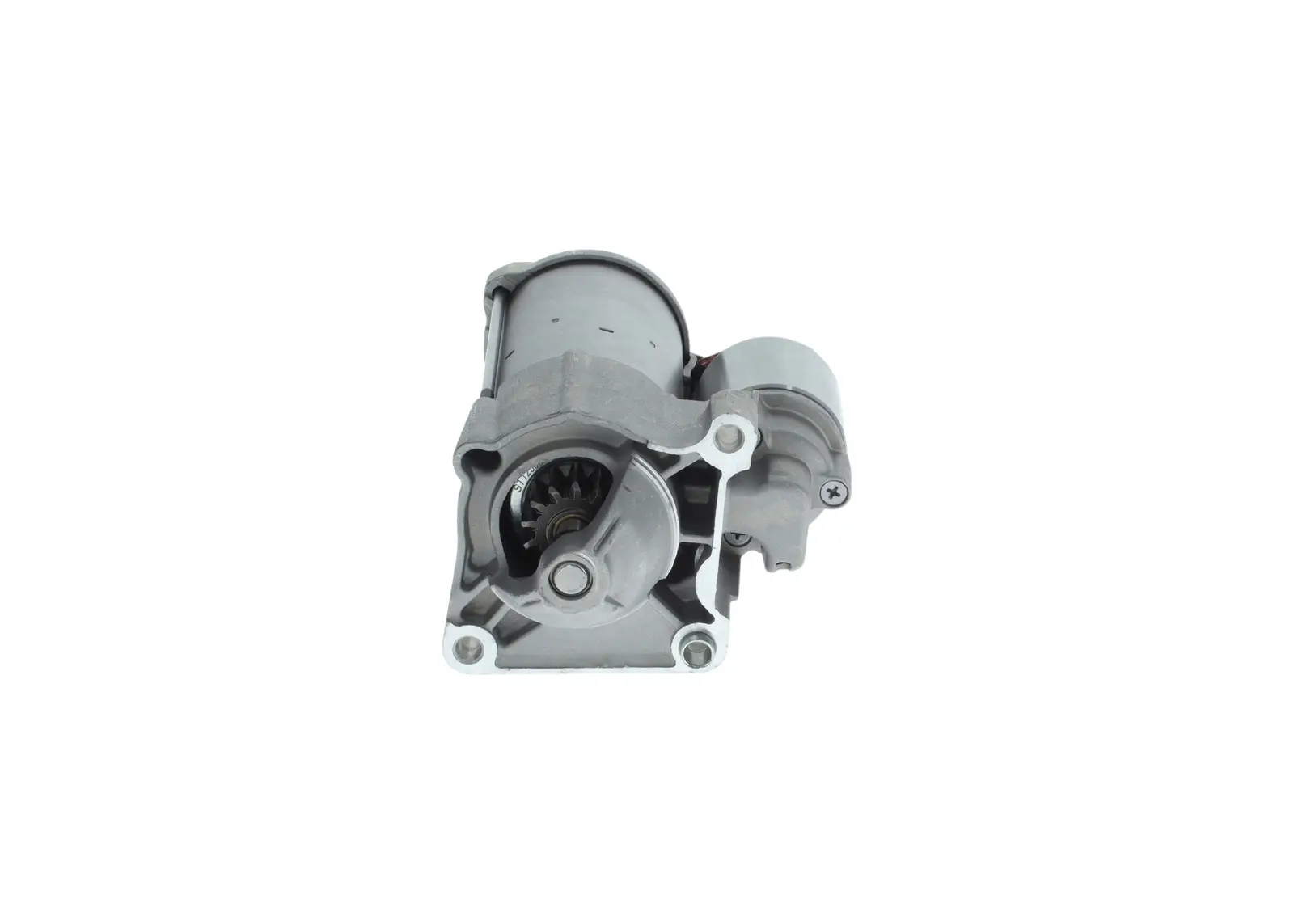

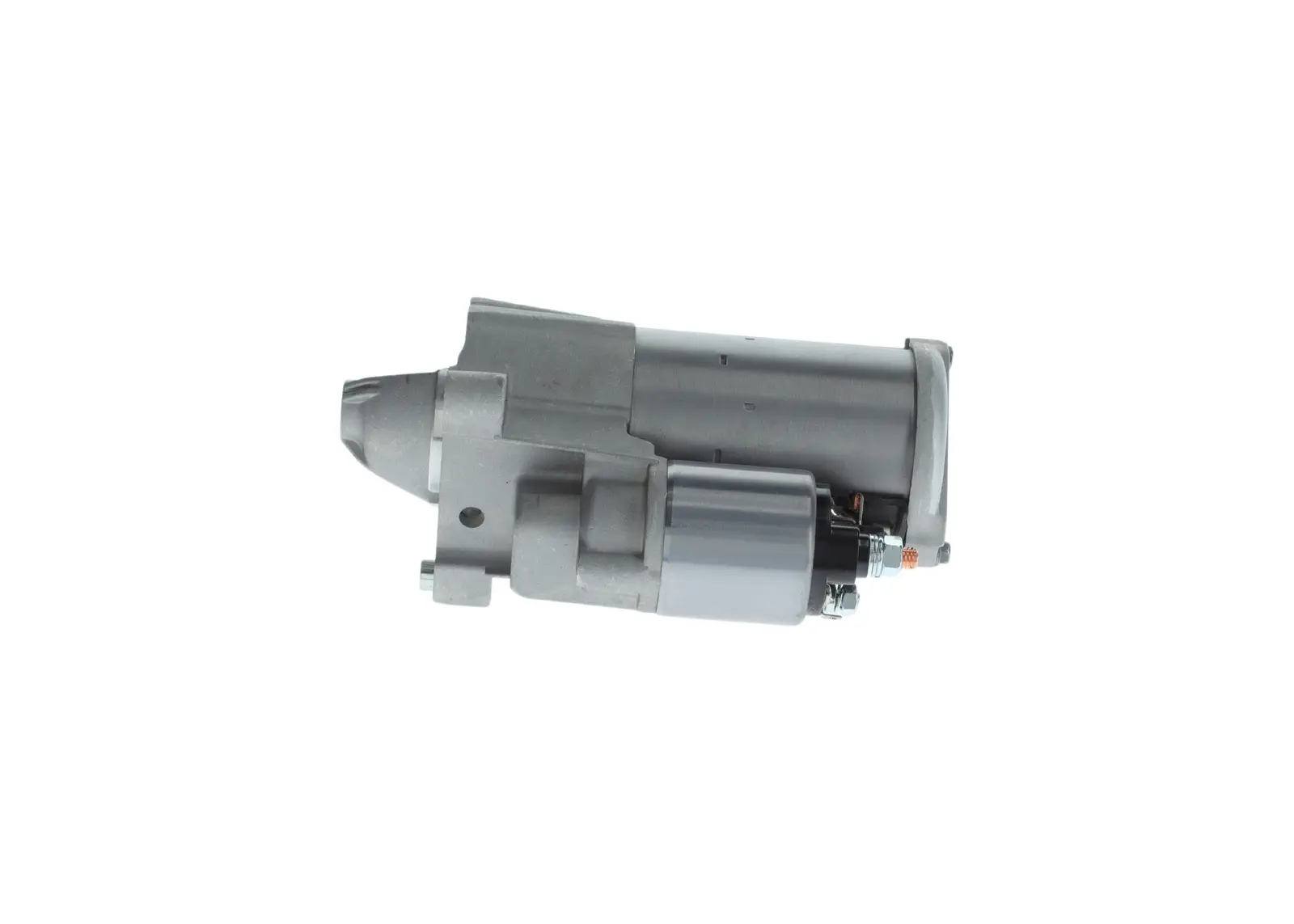

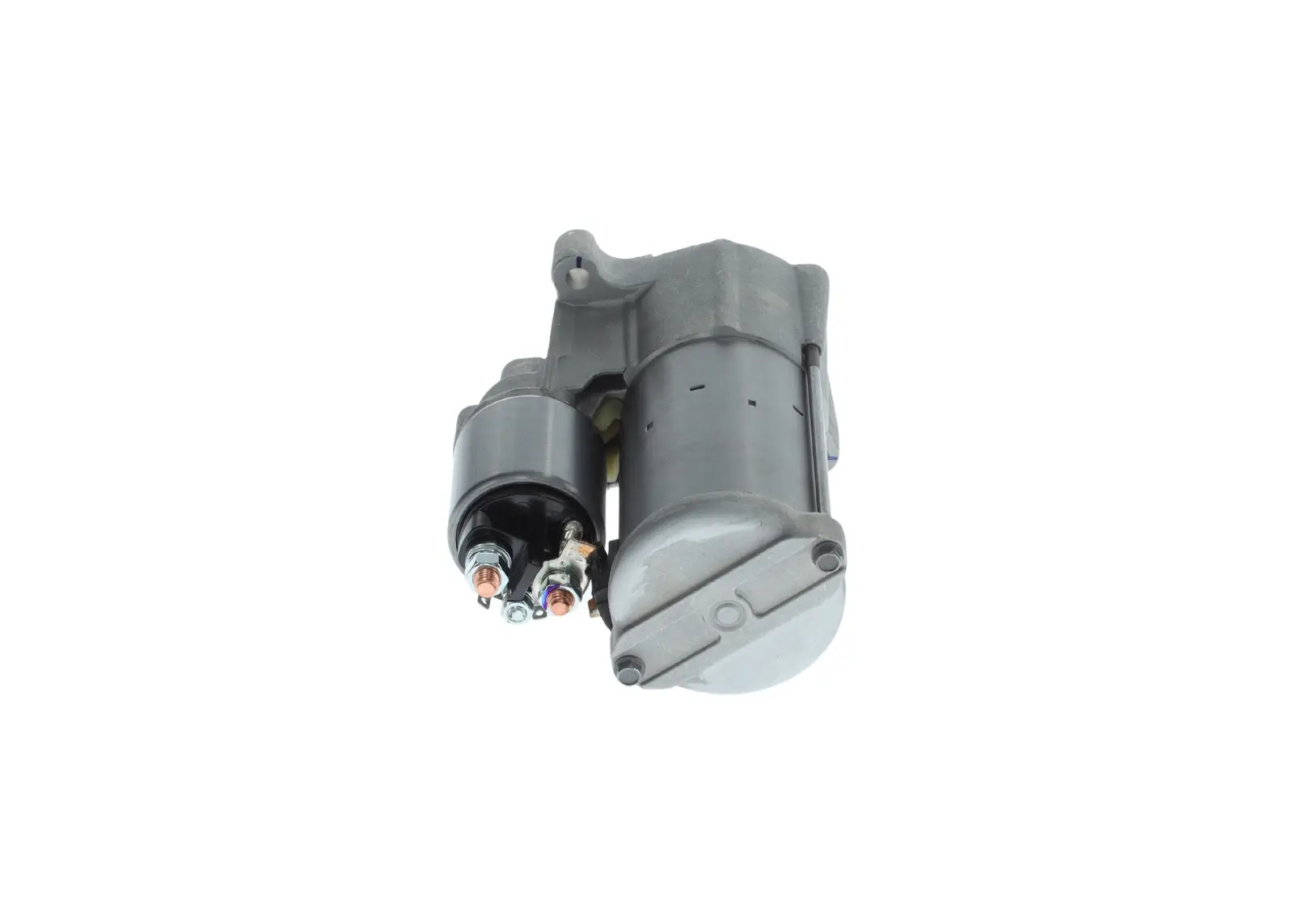

BMW F46 220i B48 Starter Motor | BOSCH 1986S00873
Mail Order over 10,000 ₺: up to 6 interest-free installments
10.233 ₺
Shipping not included
Ships from Türkiye. Import VAT and customs duties may apply on delivery and are the buyer's responsibility (DDU).
This product is equivalent to the following OEM/original part numbers. You can search by your vehicle's original part number.
- 0001170200 — Bosch DXT
- 12417649090 — Bosch DXT (BMW)
Product CodeBOSCH 1986S00873
BrandBOSCH
Length (unpacked)213 mm
Direction of RotationClockwise rotation
Rated Voltage12 V
Rated Capacity1,2 kW
Mounting Hole LocationRight
Flange Diameter66 mm
Feed Opening PositionRight
Pinion Rest Position0,5 mm
Starter Motor DesignEntegre
Number of Mounting Holes3
Feed Opening Angle133 °
Connection Terminal30
Number of Teeth13
Number of Threaded Holes0
Mounting Hole Angle41 °
Mounting Hole 18,6 mm
Mounting Hole 28,6 mm
Mounting Hole 38,6 mm
Gerilim [V]12
Starter gücü [kW]1,6
Tespit borularının sayısı3
Dişli deliklerin sayısı0
Diş sayısı13
Klemens30
Flanş çapı [mm]66
Dönme yönüDönme yönü saat yönünde
Dişli pinyonun ana konumu [mm]0,5
Marş motoru donanımıKendinden yataklı
Delik çapı [mm]8,6
Delik çapı 2 [mm]8,6
Delik Ø 3 [mm]8,6
Uzunluk [mm]213
Konum/Derecerechts
tespit açısı (açı)41
Ağız açıklığı açı ölçüsü [derece]133
Sabitleme deliği açı ölçüsü [derece]41
🚗 BMW 2 Series F46 Gran Tourer 2015-2022
🚗 BMW F45 218i B38
🚗 BMW F45 220i B48
🚗 BMW F45 225i B48
🚗 BMW F46 218i B38
🚗 BMW F48 X1 sDrive 18 i B38
🚗 BMW F48 X1 sDrive 20 i B48
🚗 BMW F48 X1 xDrive 20 i B48
🚗 BMW F48 X1 xDrive 25 i B48
