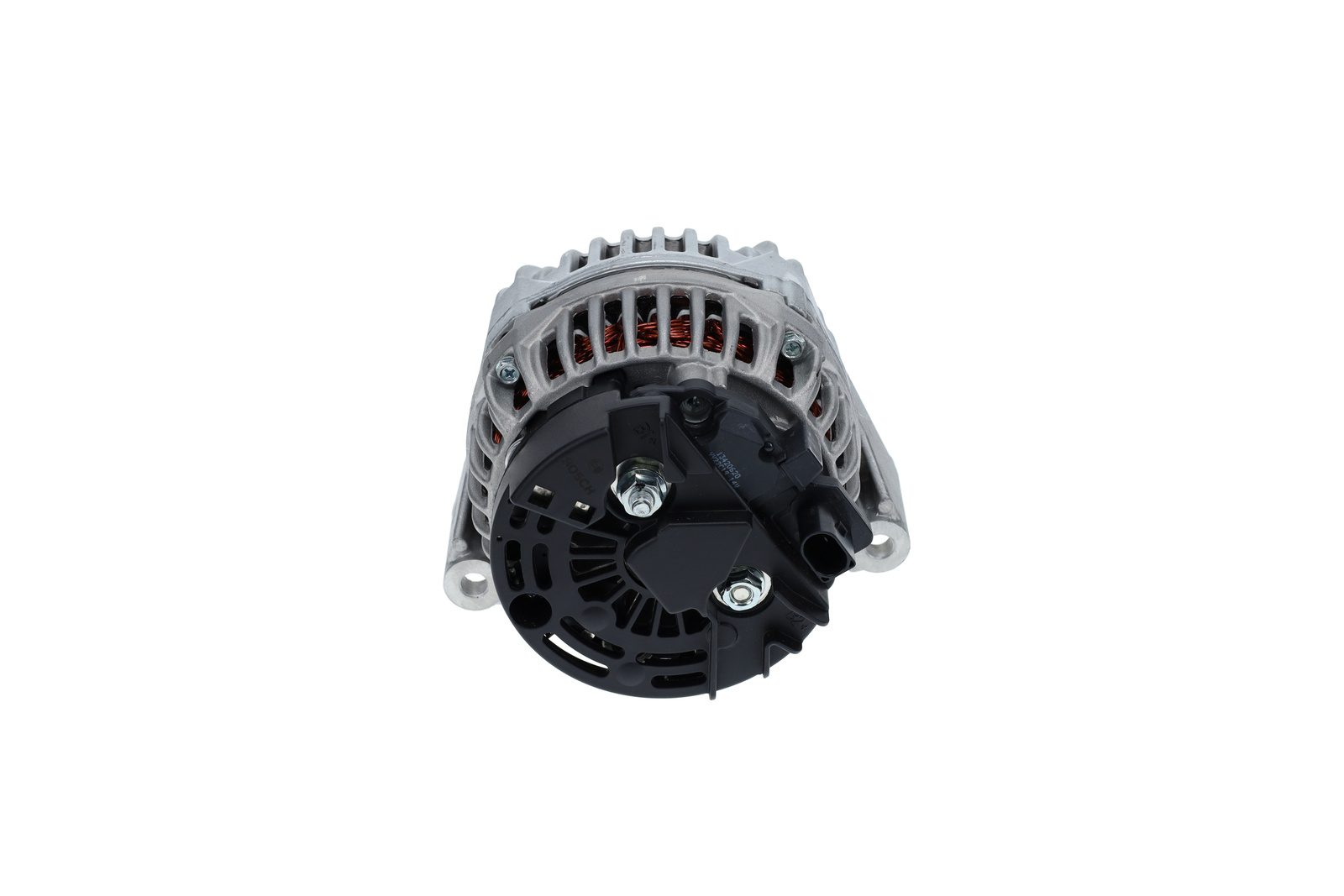

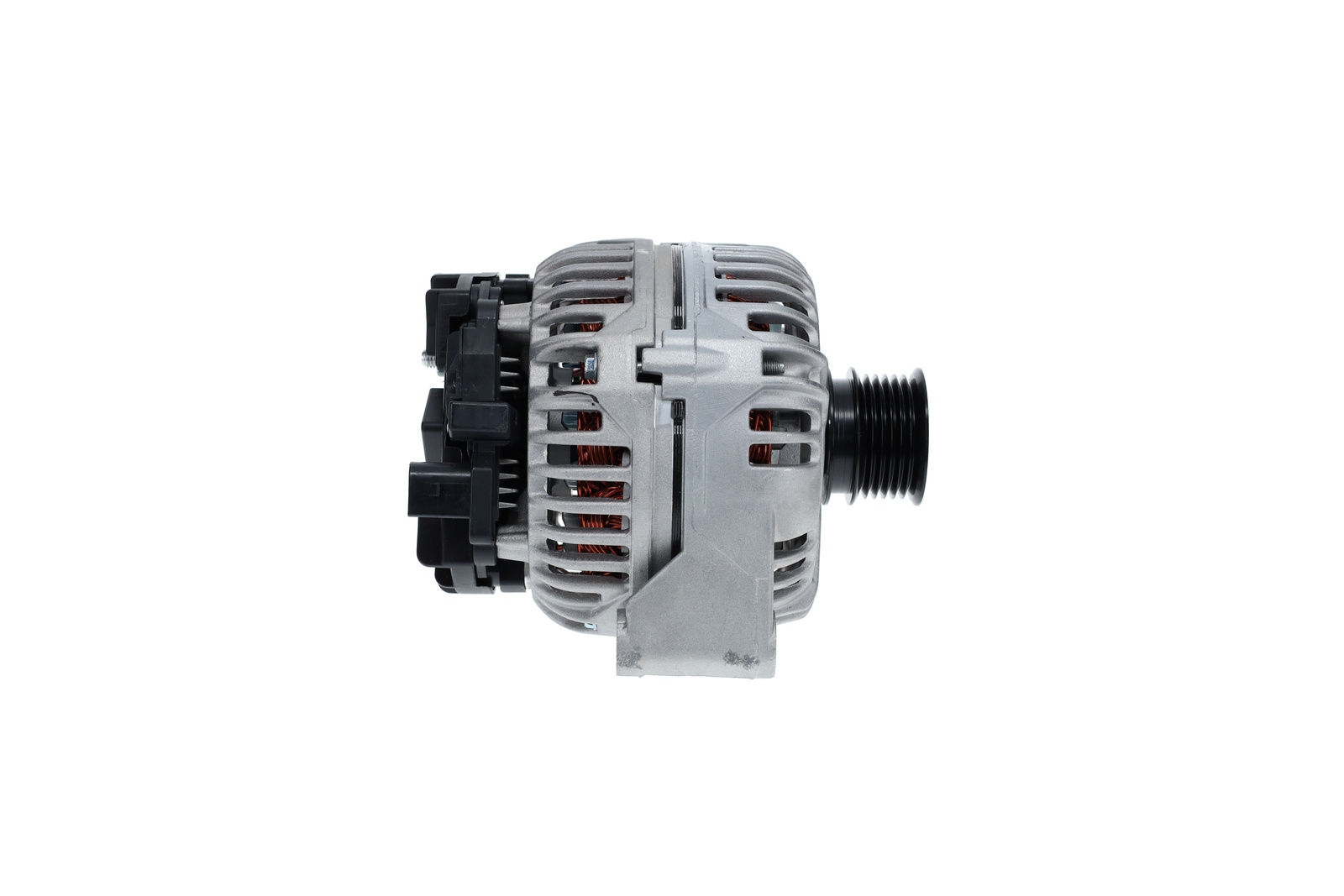

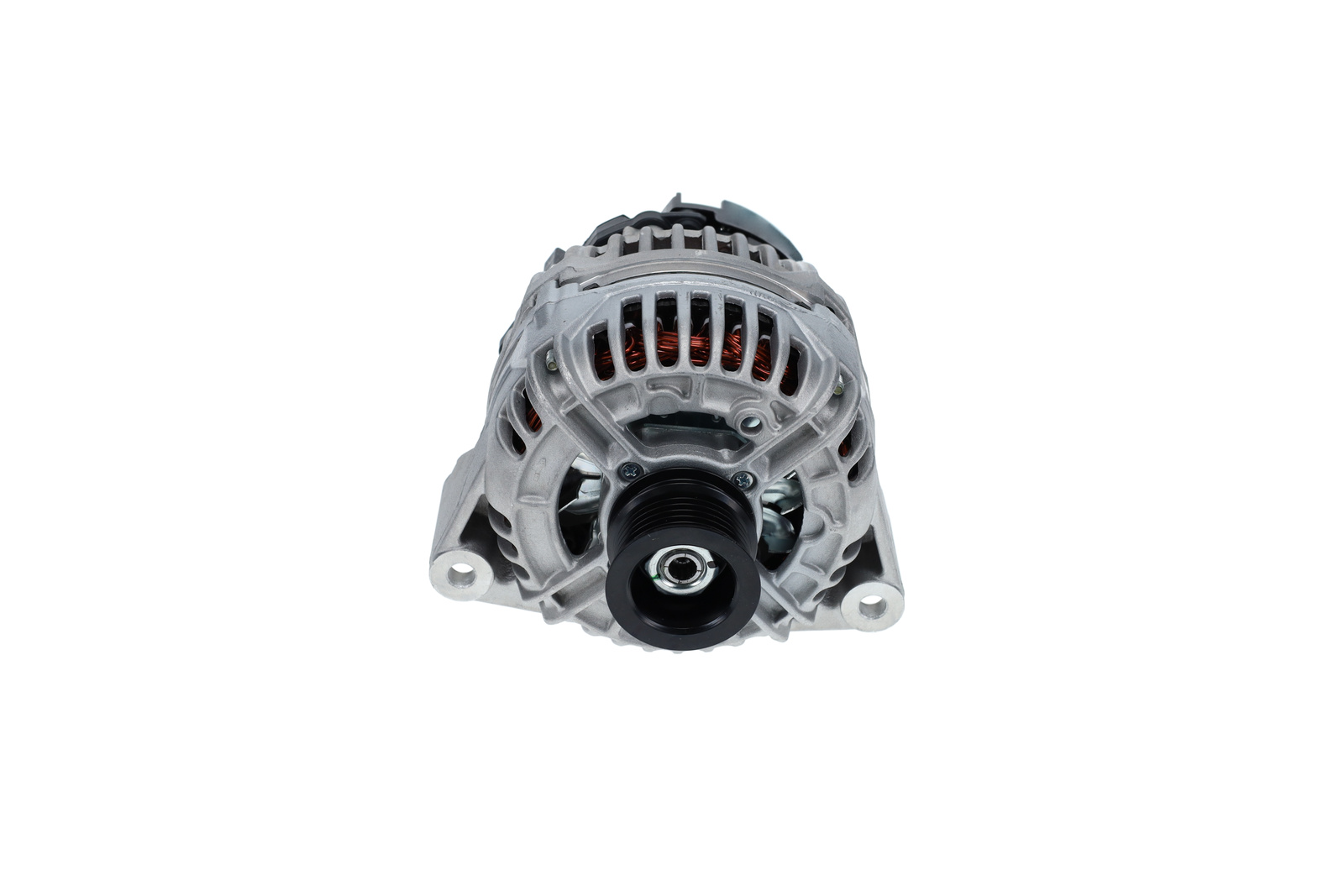

Mercedes W203 C 180 Sportcoupe M111 Alternator | BOSCH 1986A00844
Mail Order over 10,000 ₺: up to 6 interest-free installments
10.233 ₺
Shipping not included
Ships from Türkiye. Import VAT and customs duties may apply on delivery and are the buyer's responsibility (DDU).
This product is equivalent to the following OEM/original part numbers. You can search by your vehicle's original part number.
- 0111548402 — Bosch DXT (MERCEDES-BENZ)
- 011154840280 — Bosch DXT (MERCEDES-BENZ)
- 0111549302 — Bosch DXT (MERCEDES-BENZ)
- 011154930280 — Bosch DXT (MERCEDES-BENZ)
- A0111548402 — Bosch DXT (MERCEDES-BENZ)
- A011154840280 — Bosch DXT (MERCEDES-BENZ)
- A0111549302 — Bosch DXT (MERCEDES-BENZ)
- A011154930280 — Bosch DXT (MERCEDES-BENZ)
Product CodeBOSCH 1986A00844
BrandBOSCH
Length (unpacked)190 mm
Direction of RotationClockwise rotation
Rated Voltage14 V
Rated Current120 A
Single Swivel Arm Width56 mm
Swivel Arm Hole10.2
Belt Pulley Diameter48 mm
Number of Grooves6
Belt Pulley Distance92,1 mm
Holding Arm Hole10,2
Holding Arm Hole PositionSol
Holding Arm Hole Angle60
Fastening TypeSingle swivel arm
Vacuum PumpExcluding vacuum pump
Belt PulleyWith multi-groove belt pulley
Connector Diagram61
Connection TerminalB+(M8)
Gerilim [V]14
Alternatör şarj akımı [A]120
Tespit türüTek hareketli kol
Alternatör tipiHarici vakum pompası
Kayış kasnağından jeneratöre olan mesafe [mm]92,1
Dönme yönüDönme yönü saat yönünde
Kayış kasnağıÇoklu kayış kasnağı ile
Olukların sayısı6
Kayış kasnağı-Ø [mm]48
KlemensB+(M8)
Soket modeli tanımlaması61
Uzunluk [mm]190
Önerilen tamir kapsamının genişletilmesiV kayışı/kanallı V kayışı
Compatible vehicle information not yet added.
